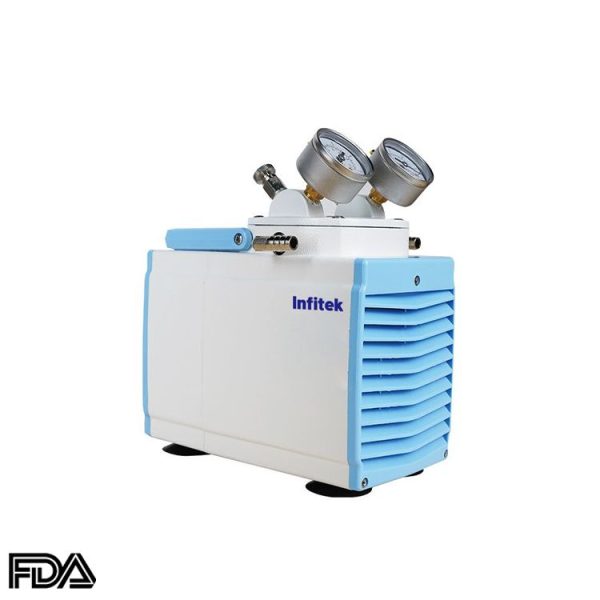

Diaphragm Vacuum Pump, VACP-D51
- Pumping Speed: 30 L/Min
- Ultimate Vacuum: 200 mbar
- Positive-negative pressure dual purpose
- Air Inlet/Outlet: φ6 mm
Description
- No need for any working medium (no oil),no pollution. The air exchange chamber is equipped with filter materials to ensure the air
- Adopt new technology and new materials in the production process. Easy to move and work smoothly, thus ensuring an ideal vacuum degree and a high air flow rate.
- The special electricitymotor is provided by the expert motor manufacturer ODM. Reasonable rotation design, equipped with an overheating power-off protector, will automatically power off when the pump body temperature reaches 130°C, and protect the motor from damage during long-term operation.
- Adoptfrictionless film movement, no heat generation, no friction loss. The diaphragm is made of imported rubber, which is corrosion resistant and has a long service life.
- Automatic cooling and exhaust system, which ensurescontinuous operation for 24 hours.
- The pressure adjustable design can meet the vacuum degree and gas flow rate within a certain range.
- The bearing adopts imported classic bearings, with stable operation, low noise and high working efficiency.
- The parts of the anti-corrosion pump in contact with gas are treated with Teflon surface treatment, which isresistant to chemical corrosion.
- Small size, light weight, easy to move, saving laboratory space, convenient for repair and maintenance.
SPECIFICATIONS
| VACP-D51 | |||
| Pumping Speed (L/Min) | 30 | Pump Head | 1 |
| Ultimate Vacuum | 200mbar | Pump body Temperature (°C) | <55 |
| Voltage | 220Vac,50Hz | Dimension(L×W×H) (mm) | 230x180x265 |
| Power | 160W | Weight(Kg) | 7.5 |
| Positive Pressure | ≥30Psi | Diaphragm | Imported Rubber |
| Air Inlet (mm) | φ6 | Valve Plate | Imported Rubber |
| Air Outlet (mm) | φ6 | Noise(BD) | <60 |
| Operating Ambient Temperature (°C) | 7-40 | Note | Positive-negative pressure dual purpose |
