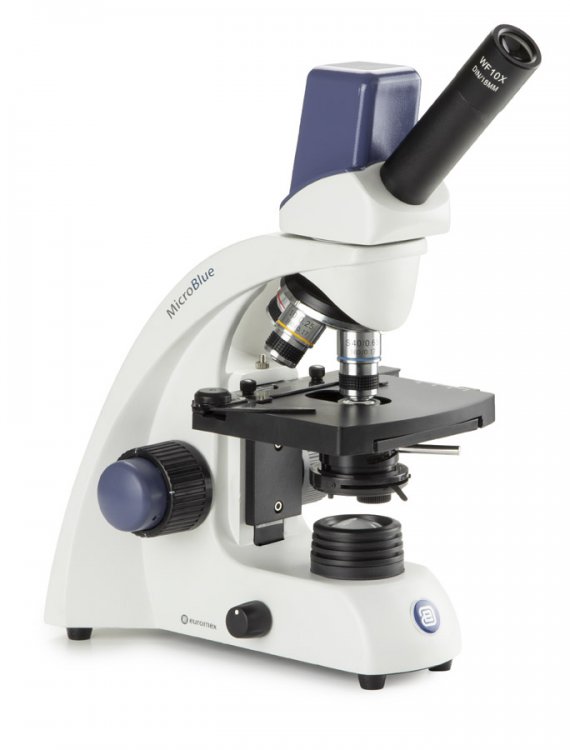

- Monocular models with 45° inclined tubes
- Binocular models have 45° inclined tubes, adjustable interpupillary distance between 48 and 75 mm and a ± 5 diopter adjustment on left tube

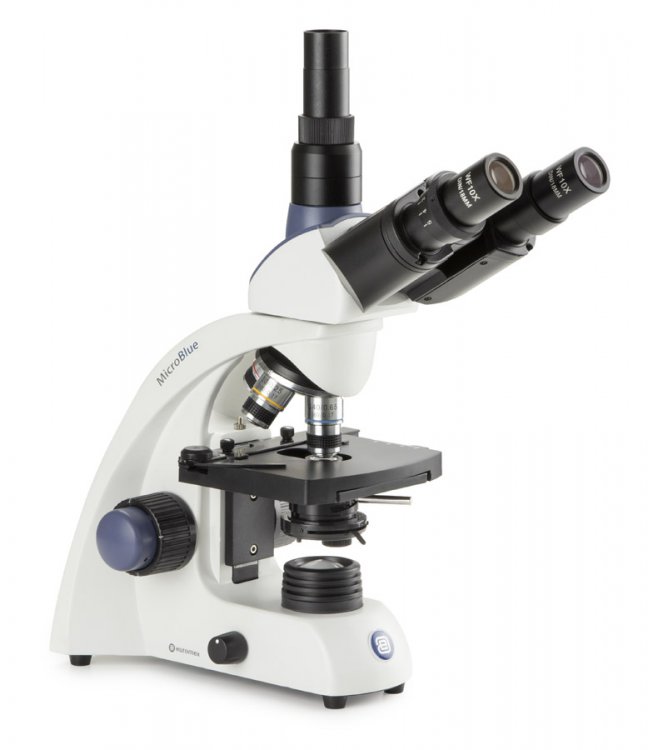

- Trinocular models have 30° inclined tubes, interpupillary distance is adjustable between 48 and 75 mm and equipped with a ± 5 diopter adjustment on the left tube
- The trinocular head has a fixed light path beamsplitter (50:50) and generates an erect image
- Two digital heads are available:
- An integrated 1.3 MP 1/2.5” CMOS sensor USB 2.0 camera, 1272 x 952 pixels
- An integrated 5.0 MP 1/2.8” CMOS sensor USB 2.0 camera, 2560 x 1920 pixels LCD version with 7” LCD screen
- All heads are 360° rotatable and secured
PACKAGE CONTENT
- Supplied with mains adapter-charger, three rechargeable AA batteries, white filter, dust cover, user manual and 5 ml immersion oil for models with an S100x objective. Software included for digital models
- USB-2 cable (except for the LCD models) and a micrometer 1mm/100 slide are included (only for digital camera models, the MB.1001-LCD and MB.1051-LCD are supplied without USB cable)
- External powersupply for LCD screen
- All packed in a polystyrene box
DIGITAL MODELS
1.3 MP CAMERA
- This model is equipped with a 1.3 MP CMOS USB-2 camera
- Maximum resolution 1272 x 952 , 24 bits color depth, up to 30 frames per second Delivered with ImageFocus 4 software
- Warranty for the camera is two years
SOFTWARE
- The ImageFocus 4 software allows to save images in .jpg, .tif, .bmp or .dicom formats as well as .avi format videos
- Measurements can be done on still and live image
- Compatible with Windows 10 and higher, both 32 and 64 bits configurations
- Mac OS-Light version is also available for capturing images
- Free updates can be downloaded on our website www.euromex.com
5.0 MP CAMERA
- This model is equipped with a 5.0 MP CMOS USB-2 camera
- Maximum resolution 2560 x 1920, 24 bits color depth, up to 30 frames per second
- Delivered with ImageFocus Plus software
- Warranty for the camera is two years
SOFTWARE
- The ImageFocus Plus software allows to save images in .jpg, .tif, .bmp or .dicom formats as well as .avi format videos
- Images can be annotated and measurements can be performedin live or captured images
- Compatible with Windows 10 and higher, both 32 and 64 bits configurations
- Mac OS version is also available
- Free updates can be downloaded on our website www.euromex.com

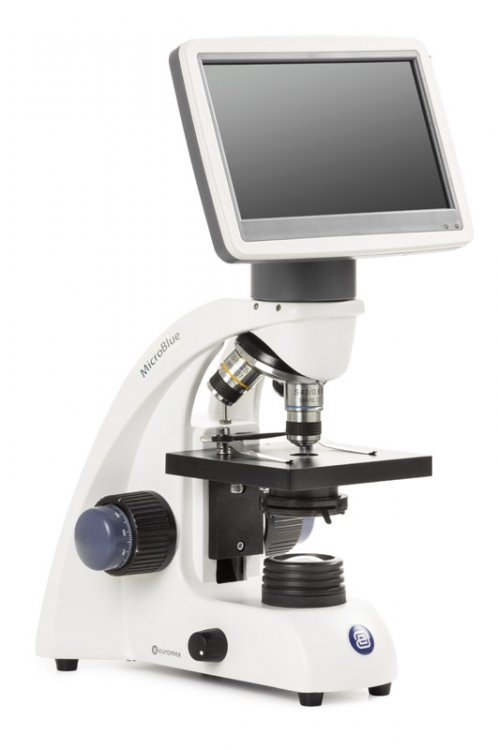

LCD SCREEN
- 7” IPS LCD screen
- Screen resolution 1920 x 1080 @ 30 fps
- Save images and videos directly to micro SD card
- Image resolution upto 1844 x 1080 in JPEG format
- Video resolution 1280 x 720 AVI format
- Basic measurement function (line) with calibration. Calibration slide available as option
- Warranty for the screen is two years
- Images are reference only. Actual product may be different. Click Our Social Network LinksBest seller & Supplier in BangladeshAl-Arafa Scientific & Surgical Co Ltd.
