Muffle Furnace incl. Scale and Software for Determination of Combustion Loss, ESMC, Nabertherm, Germany
- Model: L(T) 9/11/SW & L(T) 9/12/SW
- Volume: 9L
- Brand: Nabertherm
- Country of Origin: Germany
- Country of Manufacture: Germany

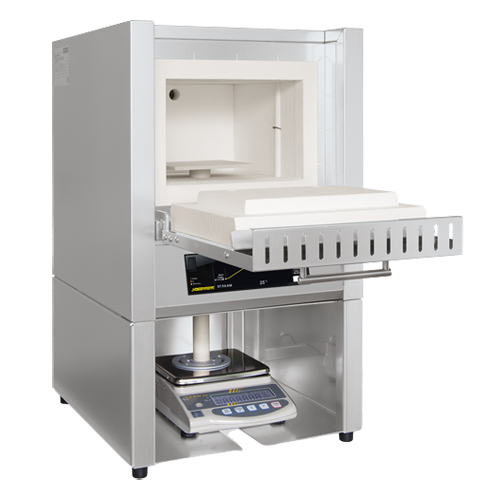

Delivery includes base, ceramic plunger with base plate in the furnace lining, precision scale and software package.
This weighing furnace with integrated precision scale and software, was designed especially for combustion loss determination in the laboratory. The determination of combustion loss is necessary, for instance, when analyzing sludges and household garbage, and is also used in a variety of other processes for the evaluation of results. The difference between the charged total mass and the combustion residue is the combustion loss. During the process, the software included records both the temperature and the weight loss.
- Like muffle furnaces L(T), except:
- Delivery includes base, ceramic plunger with base plate in the furnace lining, precision scale and software package
- 4 scales available for different maximum weights and scaling ranges
- Process control and documentation for temperature and combustion loss via VCD software package for monitoring, documentation and control
- Controller B510 (5 programs with each 4 segments)
- Chimney, chimney with fan or catalytic converter
- Over-temperature limiter with adjustable cutout temperature as temperature limiter to protect the furnace and load
- Port for thermocouple in the rear wall or in the furnace door
- Process control and documentation via VCD software package for monitoring, documentation and control
| Model | Tmax | Inner dimensions in mm | Volume | Outer dimensions2 in mm | Connected | Electrical | Weight | Heating time | ||||
| in °C1 | w | d | h | in l | W | D | H | load in kW | connection* | in kg | in min4 | |
| L(T) 9/11/SW | 1100 | 230 | 240 | 170 | 9 | 415 | 455 | 740+2403 | 3.0 | 1-phase | 50 | 65 |
| L(T) 9/12/SW | 1200 | 230 | 240 | 170 | 9 | 415 | 455 | 740+2403 | 3.0 | 1-phase | 50 | 75 |
| 1Recommended working temperature for processes with longer dwell times is 1000 °C (L 9/11) rsp. 1100 °C (L 9/12)*Please see page 75 for more information about supply voltage 2External dimensions vary when furnace is equipped with additional equipment. Dimensions on request. 3Including opened lift door (Model LT ..) 4Heating time of the empty and closed furnace up to Tmax −100 K (connected to 230 V 1/N/PE) |
||||||||||||
| Scale | Readability | Maximum weighing range | Weight of plunger | Calibration value | Minimum load |
| type | in g | in g | in g | in g | in g |
| EW-2200 | 0.01 | 2200 incl. plunger | 850 | 0.1 | 0.5 |
| EW-4200 | 0.01 | 4200 incl. plunger | 850 | 0.1 | 0.5 |
| EW-6200 | 0.01 | 6200 incl. plunger | 850 | – | 1.0 |
| EW-12000 | 0.10 | 12000 incl. plunger | 850 |
