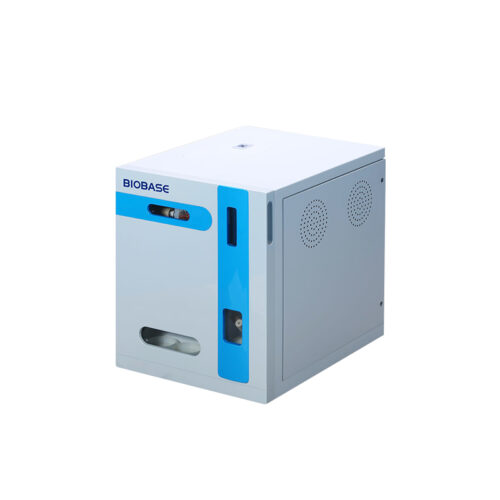

Total Organic Carbon Analyzer, BK-TOC Series, ESMC, BIOBASE, China
Features：
• Equipped with signal management system to realize accurate online setting, real-time monitoring, self-testing and flow speed controlling, also ensures perfect device performance and experiment safety
• Low current system design highly ensures the safety of operators
• Temperature can be set according to different samples which ensures complete sample digestion
• The power of cooling module can be set according to sampling volume which improves drying performance, also prohibits wet gas damaging the NDIR detector.
• Automatic leakage checking system not only avoids mis-operations also improves device performance and operation safety.
• Flow rate controlling system avoids the influence of flow rate fluctuation which ensures more accurate data
• TOC detector with 24 bits data solution extends monitoring range. Controlling system with 32bin processing technology greatly improves device performance
Technical Parameters：
| Model | BK-TOC2000 | BK-TOC3000 |
| Method | Dry method | Wet Chemical Oxidation By UV |
| Digestion Mode | High Temperature Combustion | / |
| Detector | NDIR | |
| Parameters | TC, TIC, TOC, NPOC | |
| Gas Requirement | Oxygen ≥ 99.995% | Nitrogen ≥99 995% |
| Measurement Range | 0~30000mg/l (ppm) | 0~10000mg/l (ppm) |
| Detection Limit | 50µg/l (ppb) | 5µg/l (ppb) |
| Operation Mode | PC software Controlled | |
| Application | Liquid Sample | |
| Repeatability | 3% | |
| Maximum Salinity | 85g/l | |
| Power Supply | AC 220V, 50/60Hz (Standard); AC 110V, 50Hz (Optional) | |
| Consumption | 200W | |
| External Size(L*W*H) | 460*430*450mm | 460*360*450mm |
| Net Weight | 28kg | 25kg |
| Package Size(L*W*H) | 820*570*680mm | 660*610*680 mm |
| Gross Weight | 52kg | 45kg |
