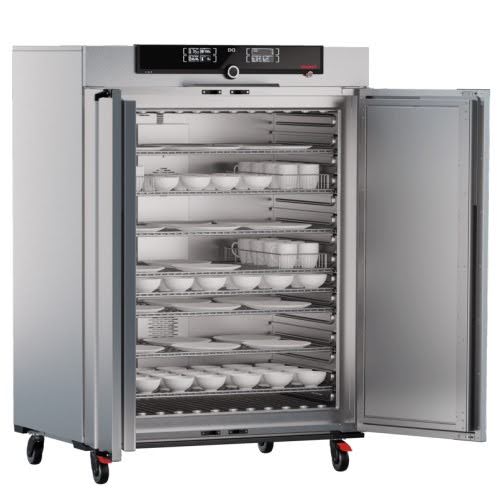

Universal oven dishwasher, UF750DW, 749 L, ESMC, Memmert, Germany

The Memmert heating oven dishwasher UF750DW is specially adapted to the EN50242 standard and complies with the standard’s specifications.

Temperature

Working temperature range: at least 10 above ambient temperature to +100°C
resolution of display for actual values: 0.1°C
resolution of display for setpoint values: 0,1°C
resolution of display/setting accuracy: 0.5°C
Temperature sensor: 2 Pt100 sensors DIN Class A in 4-wire-circuit for mutual monitoring, taking over functions in case of an error

Control technology

ControlCOCKPIT: TwinDISPLAY. Adaptive multifunctional digital PID-microprocessor controller with 2 high-definition TFT-colour displays.
Language setting: German, English, Spanish, French, Polish, Czech, Hungarian
Timer: Digital backwards counter with target time setting, adjustable from 1 minute to 99 days
Function SetpointWAIT: the process time does not start until the set temperature is reached
Calibration: three freely selectable temperature values
adjustable parameters: temperature (Celsius or Fahrenheit), fan speed, air flap position, programme time, time zones, summertime/wintertime

Ventilation

Fan: forced air circulation by 2 quiet air turbines, adjustable in 10 % steps for each segment individually
Fresh air: Admixture of pre-heated fresh air by electronically adjustable air flap
Vent: vent connection with restrictor flap

Communication:

Documentation: programme stored in case of power failure
Programming: AtmoCONTROL software on a USB stick for programming, managing and transferring programmes via Ethernet interface or USB port

Safety:

Temperature control: independently working, digitally adjustable electronic micro-processor overtemperature monitor TWW, protection class 3.1 (max-value for overtemperature, min-value for undertemperature)
Temperature control: mechanical temperature limiter TB, protection class 1 according to DIN 12880 to switch off the heating approx. 20°C above nominal temperature
AutoSAFETY: additionally integrated over- and undertemperature protection “ASF”, automatically following the setpoint value at a preset tolerance range, alarm in case of over- or undertemperature, heating is switched off in case of overtemperature
Autodiagnostic system: for fault analysis
Alarm: visual and acoustic

Standard equipment

Works calibration certificate: for +80°C
Door: fully insulated stainless steel door with2-point locking (compression door lock), lockable

Stainless steel interior:

Interior: easy-to-clean interior,made of stainless steel, reinforced by deep drawn ribbing with integrated and protected large-area heating on four sides
Volume: 749 l
Dimensions: w(A) x h(B) x d(C): 1040 x 1200 x 600 mm
Max. loading of chamber: 300 kg
Max. loading per internal: 60 kg

Textured stainless steel casing

Electrical data

Voltage Electrical load: 400 V and 3x 230 V w/o neutral, 50/60 Hz approx. 7000 W
Net weight: approx. 225 kg
Gross weight carton: approx. 295 kg

Images are reference only. Actual product may be different.
