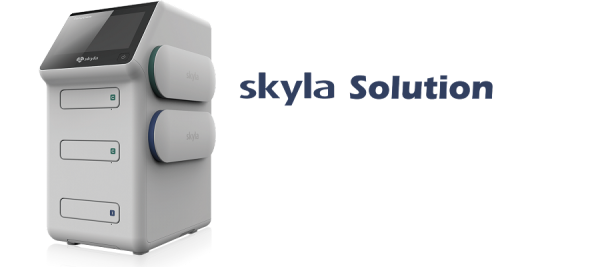

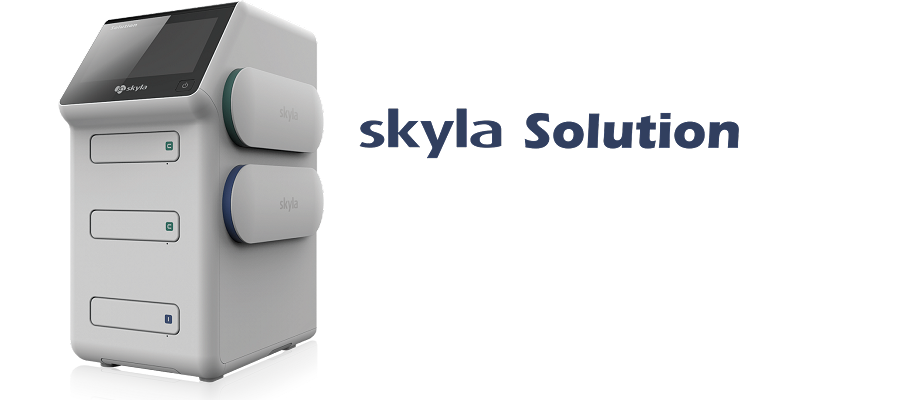

Total Solution for Veterinarian
skyla Solution – combine with all immunoassay and chemistry methodology
in one device to offer the best efficiency, accessibility and accuracy of
veterinary clinical blood tes
3 Specimens Test at One Time
– One Immunoassay + Two Chemistry
– Three Chemistry
All Methodology in One Device
– ELISA
– Turbidimetry
– Colorimetry
skyla Data Manager PC Software supported
skyla provides self-developed software for users to conveniently manage patients’ test results in PC
Fully Automated Operations
All steps are designed automatically from checking the validity of cartridge to printing the results.
Intelligent Interference Eliminating (iiE) System
Use multiple wavelengths LEDs and big data to eliminate the effect of sample lipemia (LIP), hemolysis (HEM) and Icterus (ICT) interference and provide the high accuracy results.
Principle
- Colormetric Method
- LEDs 340nm~940nm wavelength
- Turbidimetry, ELISA
- Laser or LEDs 340nm~650nm wavelength
Sample & Panel
- Sample Type
- Whole blood, plasma, serum (depends on methodology)
- Sample Volume
- 1 – 200 μl (depends on methodology)
- Test Profiles
- Chemistry: panel, single assay, dual assay
Immunoassay: single item - Measurement Time
- Chemistry panel: up to 15 tests in 12 ~ 15 mins
Chemisty single assay/dual assay: up to 6 tests in 12 mins
Immunoassay item: 6 – 25 mins (depends on methodology)
Device
- User Interface
- 8″ TFT color LCD touch screen
- Internal Memory
- Store up to 50,000 analysis results
- Data Transmission
- USB 2.0, 5 Ports Master, (USB2.0 Supoort Wi-Fi dongle 802.11 b/g/n), RS232, Ethernet 10/100Mbps
- Dimensions / Weight
- 230 (W) X 358 (D) X 490 (H) mm / 12kg
- Printer
- Built in thermal printer or external printer (Support PCL 3GUI, PCL5, PCL6 printers)
Operating Condition
- Temperature / Humidity
- 5 to 35˚C / 0 to 95 %
