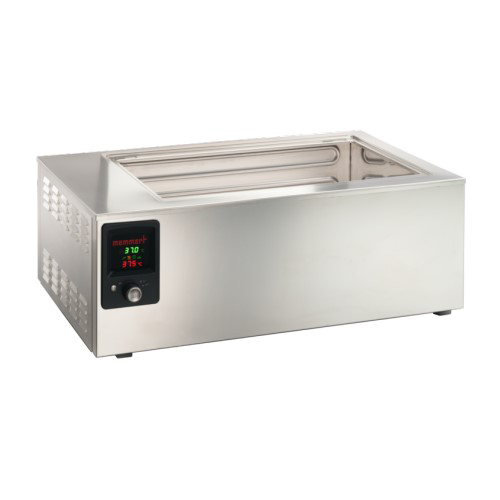

Waterbath with Circulation Pump, WPE 45, 45 L, ESMC, Memmert, Germany

Waterbath with Circulation Pump, WPE 45, 45 L, ESMC, Memmert, Germany

Water bath, WPE45 Series, 45 L, Memmert, Germany

• Model: WPE 45
• Volume: 45 L
• Manufacturer: Memmert
• Country of Origin: Germany

Description

The combination of corrosion-resistant stainless steel, precise electronics and multiple temperature protection guarantees the highest level of safety in the laboratory.

Control Technique:

• By PID microprocessor with integral self-diagnosis system and fault indicator.
• compact unit.
• 2 class A Pt100 sensors, 4-wire, monitoring and controlling the same temperature.
• Digital timer from 1 minute to 999 hours for: continuous operation, delayed start, standby, or temperature adjustment.
• Pump switch.
• The pump turns off at the end of the program, Digital display (LED) to adjust all parameters, such as temperature, time and alarm values.
• Calibration function in controller.
• Acoustic and visual alarms at the end of the program and in case of low liquid level (the heater turns off automatically).

Triple overheat protection:

• In case of overtemperature due to failure, the heater turns off at approx. 10ºC above the set temperature.
• Independent overtemperature limiter, class 3.1, electronic TWW or user adjustable class 2 TWB.
• Mechanical temperature limiter TB, class 1, switches the heater off at approx. 30ºC above the maximum temperature of the bath.
• Display values ​​setting: 0.1ºC below 99.9ºC, 1ºC above 100ºC.
• Structure grade 1.4301 (ASTM 304), corrosion resistant, stainless steel.

Technical Specifications

• Temperature range: from +30°C (at least 15°C above ambient temperature) up to +95°C.
• resolution of display and setting accuracy 0,1°C up to +99,9°C / 1°C from 100°C
• Current: 230V (±10%), 50Hz.
